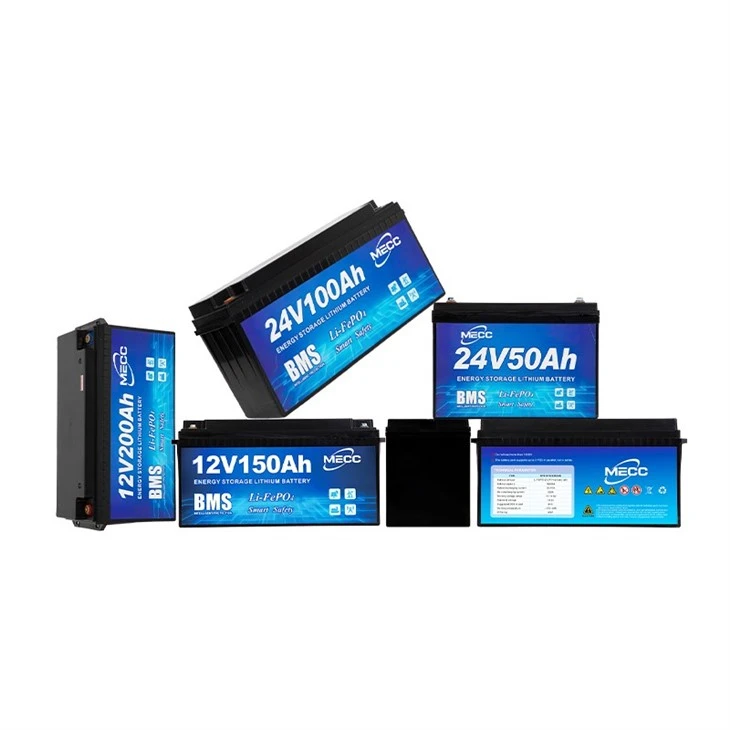

LFP Batteries Pack 12V 24V 100AH 150AH 200AH
100AH/150AH Capacity & Energy Output
:
100AH model: 12V nominal (range 10.8V–14.6V) with 1.2KWH energy-enough to run a 100W appliance for 12 hours or 12V devices (lights, pumps) for 50+ hours.
150AH model: 1.8KWH energy-powers a 200W fridge for 9 hours or supports larger off-grid setups (small cabins, marine systems) through the night.
: Maintains consistent voltage under load, avoiding the voltage drops common in lead-acid batteries that can damage sensitive electronics.
Lithium vs. Lead-Acid: Core Advantages
: Supports 3,000–5,000 deep cycles (80% depth of discharge) vs. 300–500 cycles for lead-acid-equating to 10–15 years of use vs. 2–3 years for lead-acid, eliminating frequent replacements.
:
100AH: ~7–9kg (vs. 25–30kg for lead-acid), easy to install in tight spaces like RV cabinets.
150AH: ~11–13kg (vs. 35–40kg for lead-acid), reducing fuel consumption in mobile setups (boats, RVs).
Low Self-Discharge: Loses 2–3% of charge monthly vs. 10–15% for lead-acid, retaining energy for weeks-perfect for seasonal use (vacation homes, boats).
: Built-in to protect against:
Overcharging (shuts down at 14.6V) and over-discharging (cuts off below 10.8V) to prevent cell damage.
Overcurrent (50A for 100AH; 75A for 150AH) and short circuits, reducing fire risks.
Temperature extremes (-20℃ to 60℃), ensuring safe operation in hot/cold climates.
: Automatically balances charge across cells, maximizing capacity and extending battery life-no manual "equalization" needed (unlike lead-acid).
| 12V/24V | |
| 100Ah 200Ah | |
| >3000 cycles @ 1C 100% DOD | |
| 100% @0.5C | |
| 96~99% @1C | |
| 14.6±0.2V | |
| 60A | |
| Max. Charge Current | 120A |
| Charge Cut-off Voltage | 15.6±0.2V |
| 100A | |
| IP65 |
Our factory has a strong safety culture, with comprehensive training programs for all employees.
We have a proven track record of delivering large - scale projects on time and within budget.
Our factory is equipped with advanced testing and inspection equipment to guarantee product quality.
We offer competitive pricing without compromising on the quality of our products.
Our team includes experts in various manufacturing processes, from injection molding to CNC machining.
- What is the impact of overcharging or over - discharging a lithium - ion battery?
It can cause damage to the battery, reduce its lifespan, and even lead to safety issues.
- Are there different chemistries within lithium - ion batteries?
Yes, such as lithium cobalt oxide, lithium manganese oxide, etc.
- How can you tell if a lithium - ion battery is damaged?
Signs may include swelling, reduced capacity, or abnormal heating during charging or discharging.
- Can a damaged lithium - ion battery be repaired?
In some cases, minor issues might be fixed, but severe damage usually requires professional assessment.
- What is the role of the electrolyte in a lithium - ion battery?
It enables the transport of lithium ions between the electrodes.
- How does the anode and cathode in a lithium - ion battery function?
The anode stores lithium during charging, and the cathode releases or accepts lithium during the charge - discharge process.
